What are the different types of injection mold resins

Table Of Contents

Introduction

Injection molding is a widely used manufacturing process that involves injecting molten material, typically plastic resin, into a mold cavity. It is a highly versatile and efficient technique employed in various industries, including automotive, packaging, electronics, and medical sectors, among others. One crucial aspect of achieving successful plastic injection molding is selecting the right resin for the specific application.

The significance of choosing the appropriate resin cannot be overstated. The resin material determines the physical, chemical, and mechanical properties of the final product. Factors such as heat resistance, chemical resistance, dimensional stability, and even aesthetic qualities are influenced by the resin selection. Therefore, understanding the different types of plastic injection molding resins and their properties is paramount to ensure the desired outcomes in the injection molding process.

In the following sections, we will explore the various types of plastic resin injection molding available and delve into their distinct characteristics, applications, and benefits. By gaining insight into these resin options, manufacturers and engineers can make informed decisions and select the most suitable material for their specific needs. Let’s delve into the world of injection mold resins and discover the possibilities they offer in achieving high-quality and efficient plastic injection molding processes.

II. What Resin is Used in Injection Molding?

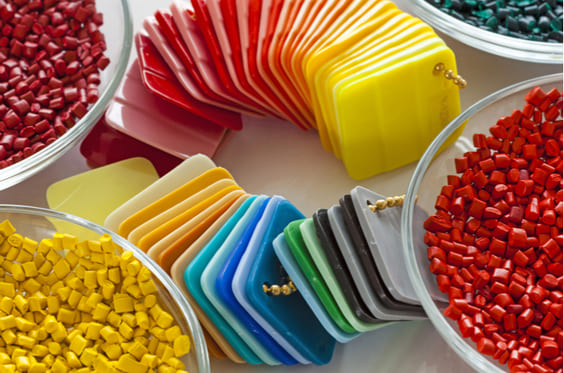

Plastic resins play a crucial role in the plastic injection molding process. These resins, in their molten state, are injected into a mold cavity under high pressure, where they cool and solidify to form the desired shape of the final product. The choice of resin significantly impacts the quality, performance, and functionality of the molded parts.

Plastic resins used in injection molding are typically thermoplastic polymers. These materials possess unique characteristics that make them well-suited for the process. Some common thermoplastic resins used in injection molding include polyethylene (PE), polypropylene (PP), polystyrene (PS), acrylonitrile butadiene styrene (ABS), and polyethylene terephthalate (PET), among others.

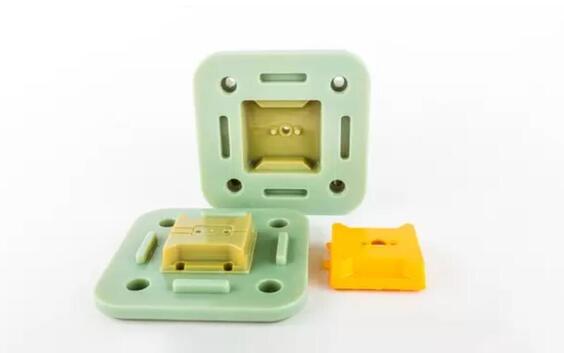

Resin Injection Mold
Resin Injection Mold

The selection of the right resin for injection molding involves considering several important factors. One key consideration is heat resistance. Different applications require varying levels of heat resistance, as some products may be exposed to high temperatures during their usage. Resins with high heat resistance, such as polyphenylene sulfide (PPS) or polyetheretherketone (PEEK), are suitable for applications where dimensional stability and strength retention under elevated temperatures are crucial.

Chemical resistance

Is another critical factor to evaluate when choosing a resin. Some products may come into contact with chemicals, oils, or solvents during their usage. Resins with excellent chemical resistance, such as polyvinyl chloride (PVC) or polypropylene (PP), are preferred in these cases to ensure the longevity and performance of the molded parts.

Dimensional stability

Is essential in injection molding, as it affects the accuracy and consistency of the final product. Resins with good dimensional stability, such as acetal (POM) or nylon (PA), help maintain the shape and size of the molded parts even under varying environmental conditions.

Other factors to consider when selecting a resin include mechanical properties (such as tensile strength, impact resistance, and wear resistance), electrical insulating properties, moisture absorption, and even aesthetic qualities such as transparency or color options.

In summary, choosing the right resin for injection molding is crucial for achieving desired outcomes. Factors like heat resistance, chemical resistance, dimensional stability, mechanical properties, and aesthetics must be carefully evaluated to ensure the selected resin meets the specific requirements of the application. By considering these factors, manufacturers can achieve high-quality molded parts that meet the desired performance criteria.

III. Types of Injection Mold Resins

There are various types of injection mold resins available, each with its own unique properties and applications. Let’s explore five main types of injection mold resins:

Acrylonitrile Butadiene Styrene (ABS):

ABS is a widely used thermoplastic resin known for its excellent impact resistance and toughness.

It offers good heat resistance, making it suitable for applications that require durability and dimensional stability under moderate temperatures.

ABS is commonly used in the automotive industry for interior and exterior parts, consumer electronics, and toys due to its versatility and ease of processing.

Thermoplastic Polyurethane (TPU):

TPU is a flexible and versatile resin with excellent elasticity and abrasion resistance.

It offers high elongation at break, making it suitable for applications that require stretchability and recovery.

TPU is often used in the manufacturing of footwear, seals, gaskets, medical devices, and sports equipment.

Low Density Polyethylene (LDPE):

LDPE is a lightweight resin known for its low melting point and flexibility.

It has good electrical insulating properties and excellent chemical resistance.

LDPE is commonly used for packaging materials, plastic bags, tubing, and general-purpose applications where flexibility and moisture resistance are required.

Acrylonitrile and Styrene Polymers (AS):

AS resins combine the properties of acrylonitrile and styrene to offer a balance of toughness and rigidity.

They provide good chemical resistance and dimensional stability to plastic materials.

AS resins find applications in automotive parts, consumer goods, and medical components due to their impact resistance and aesthetic options.

High-Density Polyethylene (HDPE):

HDPE is a versatile resin known for its high strength, rigidity, and resistance to chemicals.

It has a high melting point, making it suitable for applications that require dimensional stability at elevated temperatures.

HDPE is used in industries such as packaging, piping, automotive, and construction for products like bottles, containers, pipes, and structural components.

These are just a few examples of the many types of plastic injection molding services and resins available. It’s important to consider the specific requirements of your application and consult resin manufacturers or experts to select the most suitable resin that aligns with the desired properties and performance needed for your injection molding project.

V. Choosing the Right Plastic Resin for Injection Molding

Selecting the appropriate resin material is crucial for achieving optimal results in plastic injection molding technique. Here are some insights on how to choose the right plastic resin for specific applications:

Understand Material Properties:

Familiarize yourself with the properties of different resin materials. Consider factors such as strength, flexibility, impact resistance, chemical resistance, and UV stability.

Determine the specific requirements of your application, such as load-bearing capacity, environmental conditions, and desired product lifespan.

Consider Temperature Resistance:

Evaluate the temperature range your product will be exposed to during manufacturing, use, and storage.

Choose a resin that can withstand the anticipated temperature conditions without deforming, losing strength, or exhibiting other undesirable properties.

Assess Chemical Compatibility:

Determine whether your product will come into contact with chemicals, solvents, or other substances.

Select a resin that demonstrates good chemical resistance to ensure the integrity and performance of the molded part.

Evaluate Mechanical Properties:

Identify the mechanical properties that are critical for your application, such as tensile strength, impact resistance, hardness, and wear resistance.

Choose a resin that exhibits the necessary mechanical characteristics to withstand the anticipated stress and loading conditions.

Consider Aesthetics and Surface Finish:

If visual appearance is important for your product, consider factors such as transparency, color options, gloss, and surface texture.

Certain resins offer better aesthetics and can provide the desired visual appeal and surface finish.

Seek Expert Advice:

Consult resin manufacturers, suppliers, or industry experts who can provide guidance on suitable resin options for your specific application.

They can offer valuable insights based on their experience and knowledge of different resin materials.

Remember, selecting the right plastic resin for injection molding involves a careful assessment of the application’s requirements and a thorough understanding of the resin’s properties. By considering factors such as material properties, temperature resistance, chemical compatibility, and mechanical characteristics, you can choose a resin that best meets your project’s needs. This careful selection process ensures that the final product exhibits the desired performance, functionality, and durability.

V. Applications of Injection Mold Resins

Injection molding and the selection of appropriate resins have a significant impact on various industries. Let’s explore some of the key industries that benefit from injection molding and the corresponding resin choices:

Automotive Industry:

The automotive industry extensively utilizes injection molding for producing various components such as interior parts, exterior body panels, dashboard elements, and engine components.

Resin choices for automotive applications often include ABS for its impact resistance, heat resistance, and dimensional stability. Other resins like polypropylene (PP) and polyurethane (PU) are also commonly used for specific automotive applications.

Packaging Industry:

The packaging industry relies heavily on injection molding for manufacturing a wide range of products, including plastic bags, food and beverage containers, caps, closures, and packaging trays.

Resins like high-density polyethylene (HDPE) and polypropylene (PP) are commonly used for packaging applications due to their excellent chemical resistance, durability, and moisture resistance.

Electronics Industry:

The electronics industry utilizes injection molding for the production of various electronic components, such as connectors, housings, switches, and display bezels.

Resins like polycarbonate (PC), ABS, and thermoplastic elastomers (TPE) are frequently employed in electronics due to their electrical insulating properties, impact resistance, and dimensional stability.

Medical Industry:

The medical industry relies on injection molding for manufacturing medical device components, surgical instruments, syringes, vials, and other disposable medical products.

Resin choices for medical applications often include materials like medical-grade polypropylene (PP), polycarbonate (PC), and thermoplastic elastomers (TPE). These resins offer biocompatibility, sterilizability, and chemical resistance necessary for medical devices.

These are just a few examples of industries that benefit from injection molding and the corresponding resin choices. Other industries, such as consumer goods, aerospace, and telecommunications, also rely on injection molding for their manufacturing needs. The selection of resin materials is driven by the specific requirements of each industry and the desired properties necessary for the final product to meet the industry’s standards and regulations.

Conclusion

We explored various injection mold resins and their significance for successful injection molding in this article. Plastic resins play an essential role in injection molding processes and it is essential that one selects the suitable resin in order to have successful injection molding experiences.

Understanding the characteristics and properties of various resin materials is vital in order to successfully complete injection molding applications. Considerations must include heat resistance, chemical resistance, dimensional stability and mechanical properties when selecting the perfect resin resins for injection molding part; by carefully matching these factors with specific application needs and requirements manufacturers can ensure maximum performance, durability, and functionality in their molded parts.

Consult experts and resin suppliers when selecting an injection molding resin for projects, to help make informed decisions based on specific requirements and desired outcomes. Their knowledge will allow for informed choices to be made based on individual circumstances.

Understanding the various various injection molding material and resins and taking into account all of their key features allows you to select an ideal resin material for your project’s requirements, which ensures its final products meet all relevant standards and regulations, while still meeting desired performance and quality specifications.

Conclusion In summary, choosing an injection mold resin plays a vital role in the success of injection molding processes. By carefully considering resin properties and seeking advice from professionals, manufacturers can achieve outstanding results in their injection molding projects.
